Anixter 316-023-1615-FR
¡¡ »óÇ° »ó¼¼ ¼³¸í

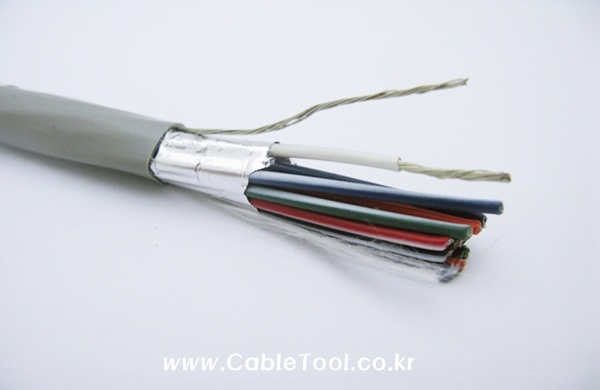

Anixter 316-023-1615-FR


PDF ÀÚ·á¾øÀ½


Specifications

CSA:

FLAME RATED GENERAL USE

Conductor Count:

15 CONDUCTORS

Conductor Material:

TINNED COPPER

Conductor Size:

16 AWG (AMERICAN WIRE GAUGE)

Conductor Type:

STRANDED CONDUCTOR

Fire Rating:

NO IS NOT A PLENUM CABLE

Insulation Material:

SRPVC-SEMI-RIGID PVC

Jacket Material:

PVC-POLYVINYL CHLORIDE

NEC Rating:

UL LISTED ART 800

Screen/Shield Type:

FOIL SHIELDED - ALUM/MYLAR

Screen/Shield:

YES CABLE HAS SHIELDING

Shield Construction:

OVERALL SHIELD & DRAIN

Temperature Rating:

105 DEGREES CENTIGRADE

Voltage Rating:

600 VOLTS AC


==========================================================================================
