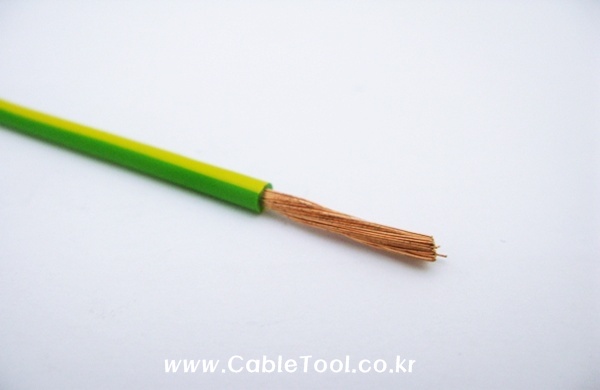

Eland A2TGY0040

Tri-rated Cable H05V2-K / H07V2-K


Applications

High temperature, flame retardant cable designed use in the switch control, relay and instrumentation panels of power switchgear and purposes such as internal connectors in rectifier equipment, motor starters and controllers. Tri-rated Cable is sometimes referred to as BS6231 Cable, H07V2-K or Panel Wire.



Standards

BS6231 Type CK, UL Subj.758, CSA C22.2 No. 210, HD 21.7 S2*

Technical Data

UL Style Number : 1015

Conductor : Class 5 flexible plain copper conductor to BS EN 60228:2005 (previously BS6360)

Insulation : PVC (Polyvinyl Chloride)

Insulation Colour :

Black, Red, Blue, Light Blue, Dark Blue, Yellow, Green/Yellow, Grey, Brown, Orange, White, Violet, Green, Pink

Voltage Rating (Uo/U) : BS6231: 600/1000V / UL, CSA: 600V/1000V / HD21.7 S2: 300V/500V, 450V/750V

Temperature Rating : BS6231: 90¡ÆC (105¡ÆC 15,000 hours), UL, CSA: 105¡ÆC

Minimum Bending Radius : 6 x overall diameter

Note :

HD 21.7 S2 covers conductor sizes up to 35mm¡±, cables above this size are generally to the specification. Where it is intended to connect cables contained within this datasheet to equipment or accessories confirmation should be obtained to ensure that they are capable of withstanding the operating temperature of the cable. In the event of the equipment or accessories having a lower temperature range the cables should be de-rated accordingly as per BS 7671 Regulation 512.1.5.

Dimensions

Eland Part Number : A2TGY0040

No. of Cores x Nominal Cross Sectional Area # x mm©÷ : 1 x 4.00

AWG : 12

Nominal Thickness of Insulation mm : 0.80

Nominal Overall Diameter mm : 4.20

Nominal Weight kg/Km : 48

UL Style Number : 1015

==========================================================================================
