Thermax M16878-4 BHE 18AWG ½á¸Æ½º
¡¡ »óÇ° »ó¼¼ ¼³¸í

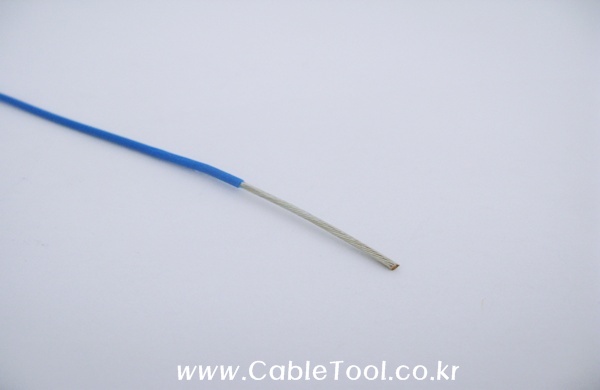

Thermax M16878-4 BHE 18AWG


Specifications


Voltage rating - volts


600


Temperature rating ¡ÆC


-55 to 200


Insulation


Extruded PTFE, wall thickness .010 (.25 mm).


Conductor


Silver-Plated Copper


Conductor Size (AWG)


18


Conductor Diameter - inches (mm)


.047 (1.19)


Stranding


19/30


Insulation Diameter Minimum - inches (mm)


.064 (1.63)


Insulation Diameter Maximum - inches (mm)


.074 (1.88)


Weight - pounds/1000 feet (Kg/1000m)


7.60 (11.3)


Maximum Resistance Ohm/1,000 feet (ohm/Km), @ 20¡ÆC


5.79 (19.0)


Options


Nickel-plated copper conductor; silver or nickel-plated high-strength copper alloy conductor; sodium napthalene etched insulation bondability. Also available to NEMA HP-3-EX.



----------------------------------------------------------------------------------------------------------------------------------------------
