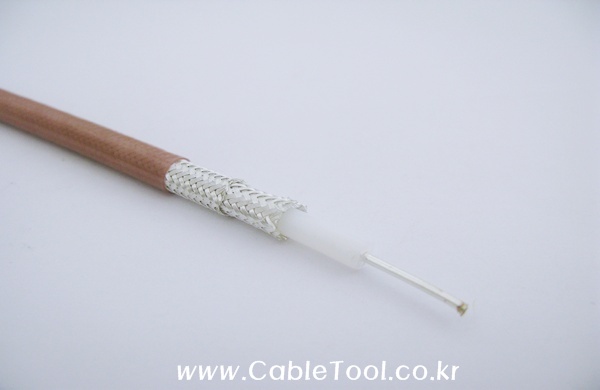

Thermax M17/112-RG304 50¿È Coaxial PTFE ½á¸Æ½º
¡¡ »óÇ° »ó¼¼ ¼³¸í

Thermax M17/112-RG304


Specifications

Conductor Diameter -inches (mm)

.059 (1.76)

Conductor Type

Solid SPCW (Silver-plated copperweld (copper-covered steel)

Impedance

50¥Ø

Max. Working Voltage

2,200

Jacket Diameter - inches (mm)

.280 (7.11)

Capacitance (pF/ft)

32.0 (105)

Weight - pounds/1000 feet (Kg/1000 M)

89.1 (133)

Attenuation @ 100 MHz (dB/100 ft.)

2.7

Attenuation @ 1 GHz (dB/100 ft.)

11.1

Attenuation @ 400 MHz (dB/100 ft.)

6.4

Insulation Diameter - inches (mm)

.185 (4.70)

Jacket Type

Extruded FEP (Fluorinated Ethylene Propylene)

Insulation Type

Extruded PTFE (Polytetrafluoroethylene)

Braid Type

Double 34 SPC (Silver-plated copper)

Braid Diameter - inches (mm)

.240 (6.10)

Max. Conductor Resistance - Ohm/100 ft. (ohm/100 meters)

.800 (2.62)

Min. Dielectric Strength - KV RMS

5.00

Min. Corona Extinction - KV RMS

3.00

Max. Power @ 100 MHz (Watts)

3,200

Max. Power @ 400 MHz (Watts)

1,450

Max. Power @ 1 GHz (Watts)

870

Thermax Type

RGS-304

Cable Type

Coaxial





----------------------------------------------------------------------------------------------------------------------------------------------
