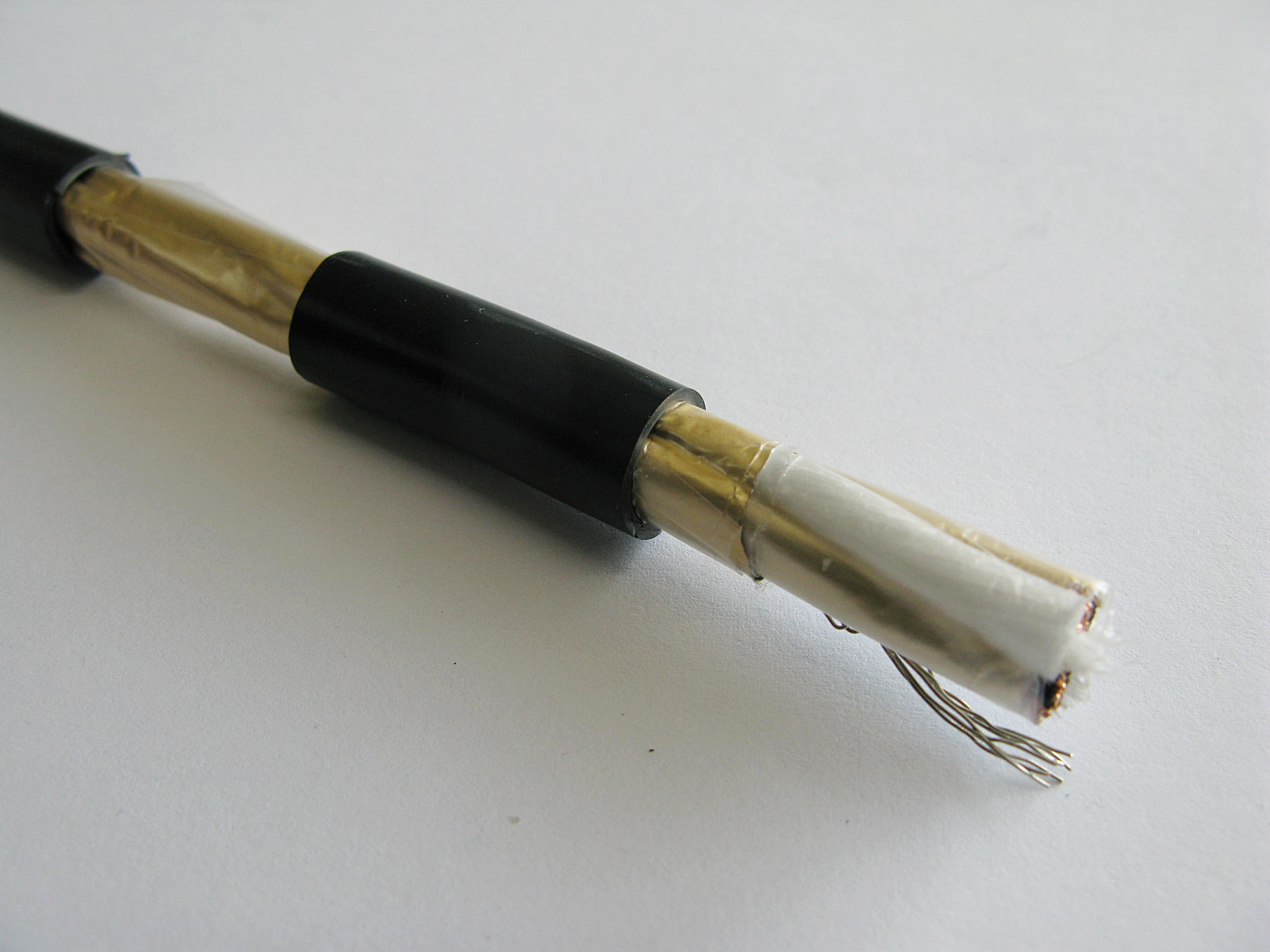

Leoni Kerpen RE-2X(St)Y-fl PiMF (Black) 2 x 2 x 1.5§±/7 Part No.LKX 7128E286
±Ô°Ý : RE-2X(St)Y-fl PiMF (Black) 2 x 2 x 1.5§±/7
¡¡ »óÇ° »ó¼¼ ¼³¸í

Flame Retardant, SunlightResistant

90¡ÆC / 300V

Multi-Pair,XLPE-Insulation, Individual & Collective Screen, PVC-Sheath

RE-2X(St)Y-fl PiMF (Black)2 x 2 x 1.5§±/7

No. LKX 7128E286


******************************************************************************************

=Application=

transmission of analogue anddigital signals in instrument and control systems; allowed use in zone 1and zone 2 group II classified areas (IEC 60079-14); not allowed directconnection to low impedance source, e.g. the public mains electricity supply.

Recommended indoor and outdoorinstallation, on racks, trays, in conduits, in dry and wet locations; not direct burial.

******************************************************************************************




=Construction=

Conductor................. plain annealed copper wire, stranded, size:0.5 mm2, 0.75 mm2, 1 mm2, 1.3mm2, 1.5 mm2, 2.5 mm2)

Insulation................ cross-linked polyethylene XLPE

Colourcode............... black / white,continuously numbered on white core (1, 2, 3..)  multielement

Individualscreen......... 24 ¥ìm aluminium / PETP tapeover tinned copper drain wire, 0.6 mm ¨ª, plastic tape under and above screen

Wrapping.................. at least 1 layer of plastic tape

Collectivescreen......... 24 ¥ìm aluminium / PETP tapeover tinned copper drain wire, 0.5 mm2

Outersheath.............. polyvinyl chloride PVC,black, blue intrinsically safe systems

******************************************

RE-   Instrumentation Cable

2X    XLPE insulation

(St)  collective screen

Y     PVC outer sheath

-fl  reduced flamepropagation

PiMF  pair in metal foil

******************************************




===========================================================
