레오니 #7635 000

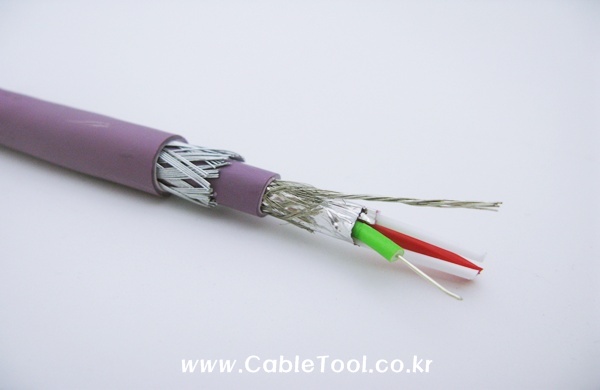

Profibus DP / SWB Armoured Type Cable

pairs : 1

Core diameter : 2.5mm

Diameter under armour : 7.6mm

Braid wire diameter : 0.3mm

RT of outer sheath : 1.3mm

Overall diameter : 11.6mm

Construction

Conductor: Solid tinned copper, size: AWG 22/1

Insulation: Fomed polyethylene with skin layer

Color code : a-core: green; b-core: red

Screen : Plastic coated aluminium tape, metallic surface outside in contact

with tinned copper drain and tinned copper wire braid

Bedding: Low smoke zero halogen compound LSZH, violet

Armour : Galvanized steel wire braid, opt. coverage approx. 80 %

outer sheath : Low smoke zero halogen compound LSZH, violet

Marking : LEONI KERPEN RS485 PROFIBUS / FIP Production Lot Code  Length Marking

Standards applied(적용 기준)
Fieldbus cable, Type A, bus-system Profibus FMS/DP and FIP acc, to IEC 61158-2(interface RS 485)Suitable use in hazardous classified locations class I and Class II division 2 acc. to NEC 501-4(b) and NEC 502-4(b)or zone 1 and zone 2, group II, acc. to IEC 60079-14, resp.

Recommended indoor and outdoor installation, in dry and wet locations, on racks, on trays, in conduits.

● Temperature range: -40℃ up to +70℃/operation/, -5℃ up to +50℃/installation/

●  Flame propagation: UL 13 vertical tray test IEC 60332-3-24 (cat. C)

●  Low smoke characteristic: IEC 60134 (L.T >60%)

●  Low smAmount of halogen acid: IEC 60754-1 (0%)

●  Degree of acidity of gases: IEC 60754-2 (pH > 4.3, c < 10uS/mm)

●  Oxygen index of outer sheath: ASTM D 2863 (min. 30%)

●  Oil resistance: ICEA S-73-532

● UV resistance: UL 1581 article 1200

===========================================================
