Draka  S611T MARINE FIBER OPTIC CABLES

Tight buffer construction 2 to 48 fibers /singlemode or multimode/LSZH

Application

The Drake S611T series of Marine and Offshore fiber optic cables is designed especially the harsh environments of commercial marine vessels, oil platms and other similar applications.

Draka S611T low smoke/zero halogen, flame retardant cables offer the versatility and ease of use of our other offshore cables in a construction suited marine applications. They are compliant with the latest IEC requirements.

S611T cables meet the requirements of IEC 60793-1 and IEC 60793-2 specifications, are encapsulated in all dielectric, tight buffered construction, individuall reinced with aramid yarns and jacketed (breakout style). The breakout components are cabled around a central member providing additonal tensile strength to the entire construction.

The thermoplastic low smoke/zero halogen jacketing system offers good resistance to chemicals, fluids, fungus, and abrasion.

This product is readily available in an armored version.

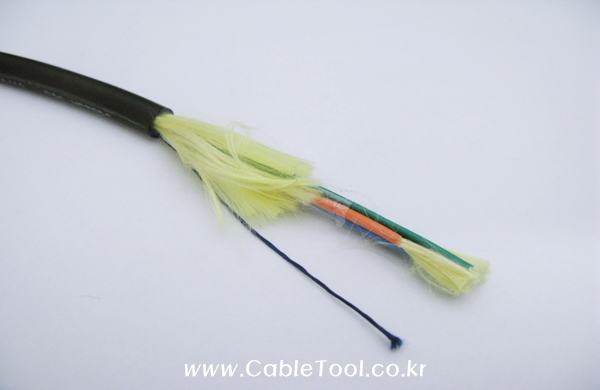

Construction

1.Central Strength Member : Dielectric material (epoxy fiberglass rod).

2.Fiber :

Multimode or singlemode fibers with an easily-strippable 900μm tight buffering coloredper TIA/EIA 598.

3.Subunit Strength Member : Aramid  yarn

4.Subunit  Jacket : ChromaTek-L™ Halex low smoke zero halogen polyolefin.

5.Sheath : ChromaTek-L™ Halex low smoke zero halogen polyolefin.

Features

•Low smoke/zero halogen construction meets appropriate IEEE and IEC standards fire, smoke, and toxicity

•Superior resistance to oil, abrasion, moisture, sunlight, mud, crush and impact

•Gigabit Ethernet 802.3Z compliant

Ratings

Meets IEC 60794-1-1, 60794-1-2 and 60794-2.

Det Norske Veritas Type Approval Certificate E-7154.

American Bureau of Shipping Approval Certificate 04-HS440499B/2-PDA.

Lloyds Registry of Shipping Approval Certificate 00/00157E2.

Flame retardant per IEC 60332-3, CAT. A CAT A/F and IEEE 1202

Smoke density requirements of IEC 61034-1 and IEC 61034-2

Acid gas generation requirements of IEC 60754-1 and IEC 60754-2

Toxicity requirements of NES 713

Meets the permance requirements of IEEE 802.3z (Gigabit Ethernet)

=============================================================================
