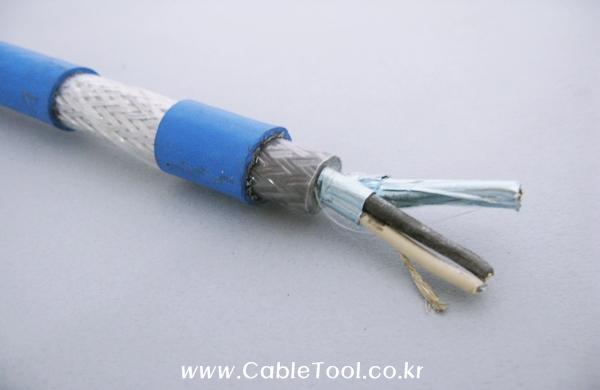

Draka 840140

BFCU(I) 250V, Fire resistant, Individual screened instrumentation


¡Ü»ç¾ç¼³¸í¡Ü

Construction

1.Conductor:

Tinned Tinned flexible circular copper, 0.75, 1.0 & 1.5 sqmm (BS6360 class 5)

Tinned stranded circular copper, 2.5sqmm (BS 6360, class 2)

2.Insulation: Mica Glass Tape / EP-rubber, GP4 to BS 7655: section 1.2

3.Pair / Triple /Quad twisting

Colour coded cores twisted together to m a pair, triple or quad, which is

individually screened with aluminium backed polyester tape with a tinned

copper drain wire. Each pair, triple or quad is wrapped with polyester tape to

prevent electrical contact with adjacent pairs, triples or quads.

Individually shielded pairs, triples or quads are laid up in concentric layers and

wrapped with a PETP tape.

Pairs, triples, or quads are identified by numbers printed directly on the

insulated conductors.

4.Inner covering: Flame retardant and halogen-free thermoplastic EP-rubber based compound

5.Tape over inner covering: PET tape + rubberized Polyamide tape

6.Armour/screen: Galvanized steel wire braid

7.Tape over armour/screen: PET tape + rubberised Polyamide tape

8.Outer sheath: Flame retardant, halogen-free, enhanced oil-resisting thermoset compound

(LSF), SW4 to BS 7655 section 2.6

9.Outer sheath colour: Grey or Blue


Standards applied

BS7917/BS6883/UKOOA - Design

BS6360 class 2 or 5 - Conductor

BS7655 section 1.2 - Insulation

BS7655 section 2.6 - Sheath

IEC 60332-1 & 3-22 - Flame Retardant

IEC60331-21 - Fire Resistant

IEC60754-1,2 - Halogen Free

IEC 61034-1,2 - Low Smoke

----------------------------------------------------------------------------------------------------------------------------------------------
