Draka 60036 µå¶óÄ«
¡¡ »óÇ° »ó¼¼ ¼³¸í

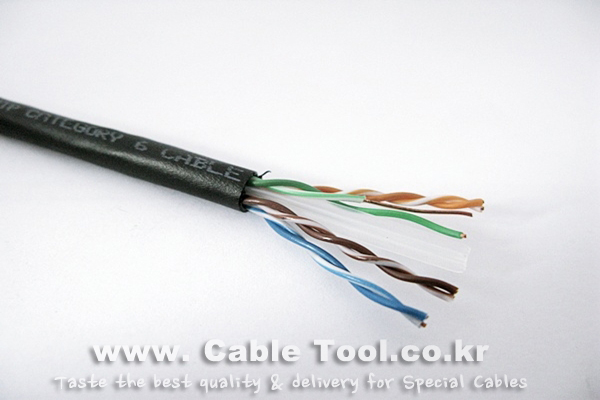

Draka 60036 / UTP Cat 6 250MHz



¡Ü»ç¾ç¼³¸í¡Ü

Cable Construction
Number of pairs: 4

Sheath Material: PE
Conductor dimension (mm): 0.56

Insulation diameter (mm): 0.98PE
Insulation Color:BLUE / Whte-Blue, ORANGE / White-Orange, GREEN / White-Green, BROWN / White-Brown,
Cable diameter (mm): 6.3

Weight (kg/km): 38.5



Cable Properties
Bending: Minimum bending radius installed 4 x D

Tensile strength: Maximum tensile load, installation 100 N, Maximum tensile load, installed No stretch
Temperature window: Operation -20¨¬C to +60¨¬C, Installation 0¨¬C to +50¨¬C

Fire classification

PVC IEC 60332-1
LSOH IEC61034, IEC60754, IEC 60332-1
LSFROH IEC61034, IEC60754, IEC 60332-3C

Operating Voltage

Nominal: 30V DC, Maximum: 72V DC

Ordering Inmation
UTP Flame ret._4x2/0.56 Category 6_PVC_60088_ IEC 332-1
UTP LSHF_4X2/0.56 Category 6    LSHF         60075   IEC 332-1
UTP PE_4x2/0.56 Category 6_PE_60036_N.A

----------------------------------------------------------------------------------------------------------------------------------------------
